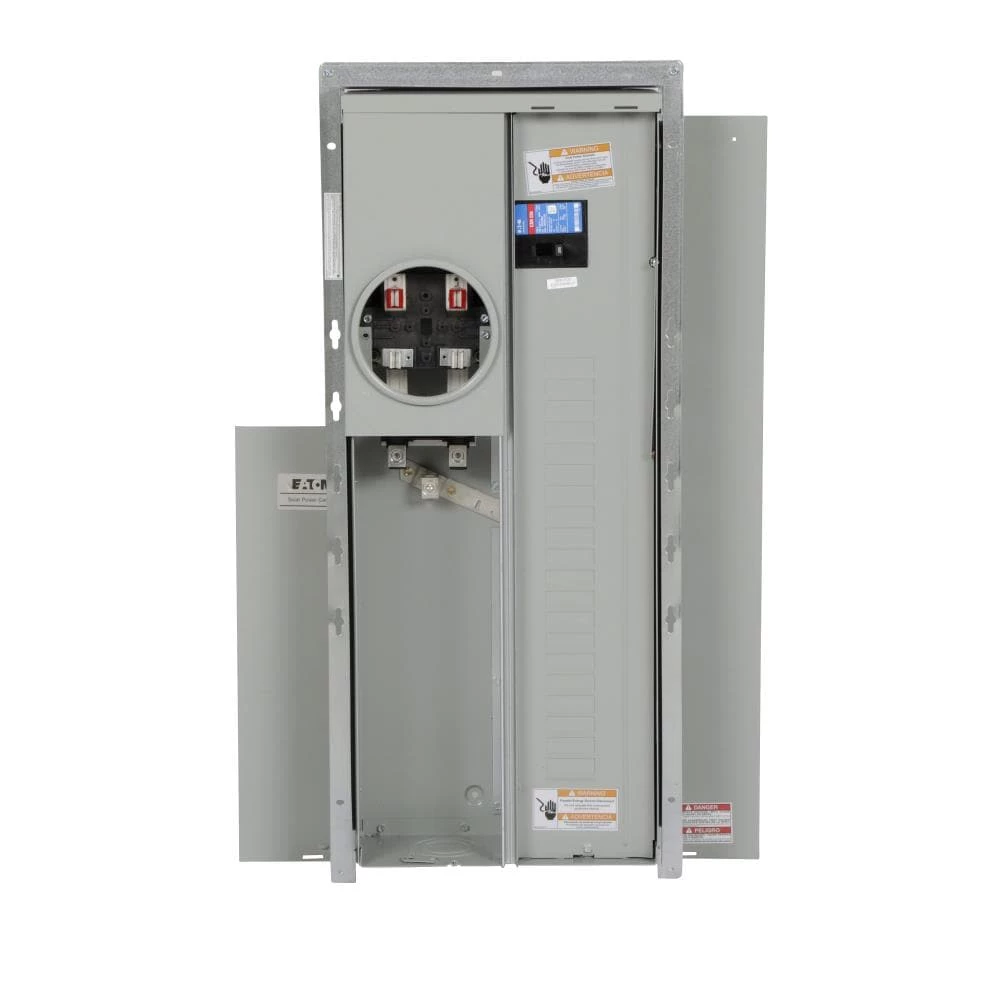

Eaton Breaker Boxes Type BR 200-Amp 20-Spaces 40-Circuit Main Breaker Meter Combo Load Center

Eaton’s solar power centers combine both utility power and solar photo voltaic (PV) power into one enclosure. Solar power centers can be applied as a component of a complete PV electrical system. Eaton offers the industry’s most complete line of balance of system products, along with a wide variety of configurations, including loadcenters and meter breakers. The solar power centers feature industry-exclusive, factory installed permanent markings, which help to ensure National Electrical Code® (NEC®) compliance. Required by the NEC, these markings enable quick and easy identification of product ratings and location of the parallel energy source disconnect. Prior to installation, contact your local utility to confirm approval.

• This is a EUSERC/west coast design
• Meter socket and distribution section are located in one enclosure, which provides savings in labor and material
• This is a type BR panel accepting only type BR circuit breakers
• Side by side construction
• 70 Max PV input
• Service design is overhead and underground
• Permanent solar marking identifies location of the parallel energy source disconnect (backfed PV breaker), which is always located opposite the normal power over current device
• Permanent solar marking identifies maximum bus, utility and PV disconnect ratings to ensure that the total utility and inverter power sources do not overload the busbar
• One-piece steel backpan provides reliable breaker mounting and superior stability
