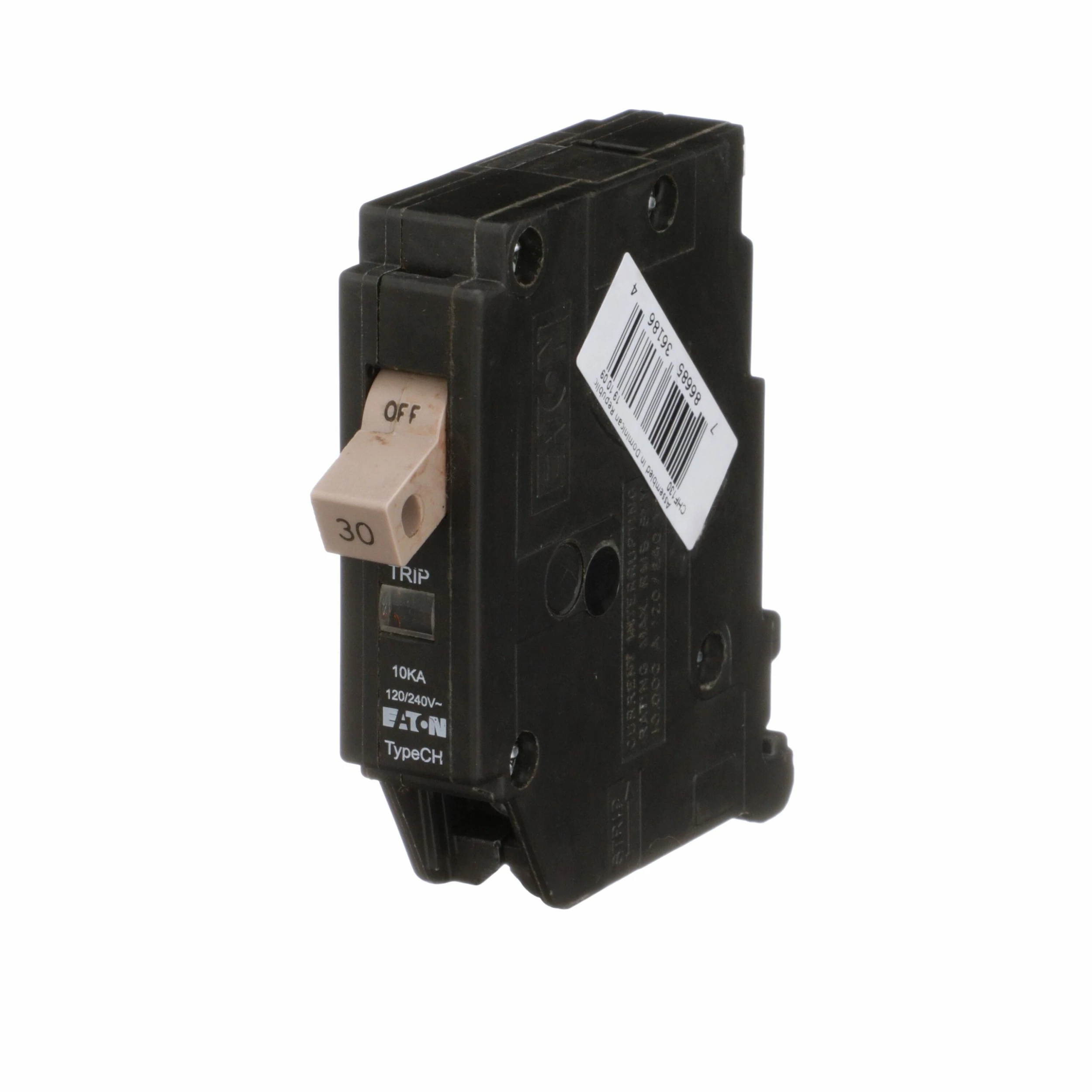

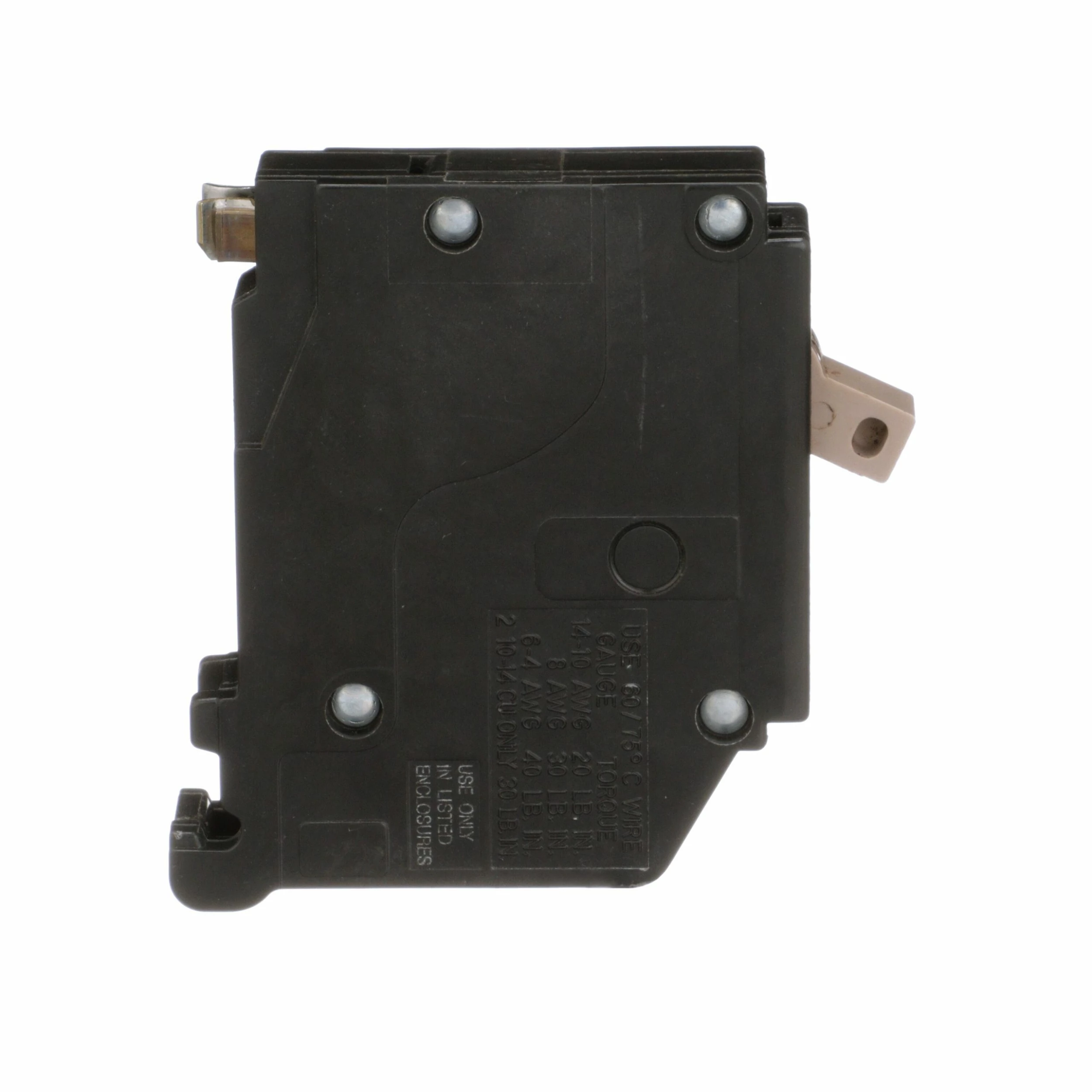

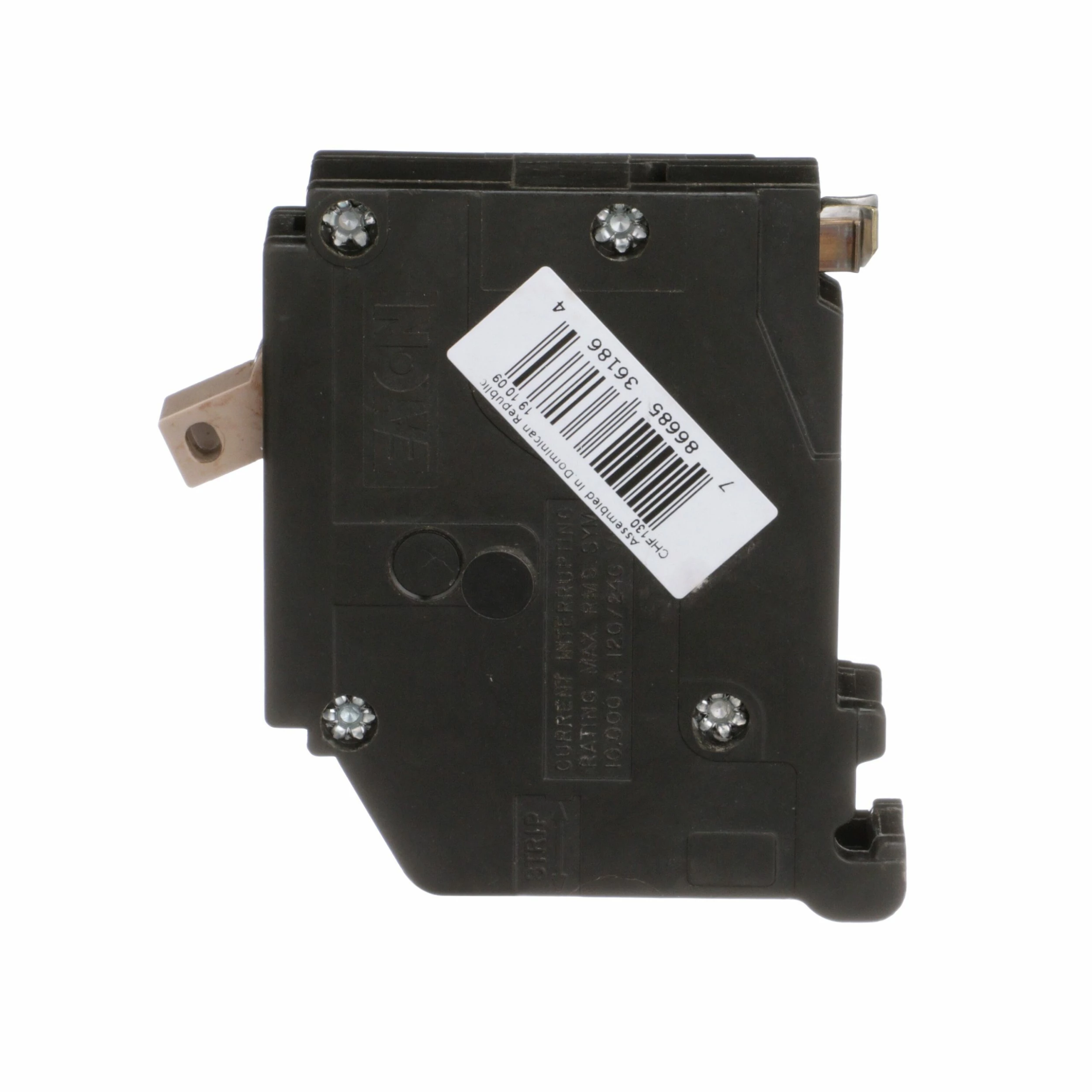

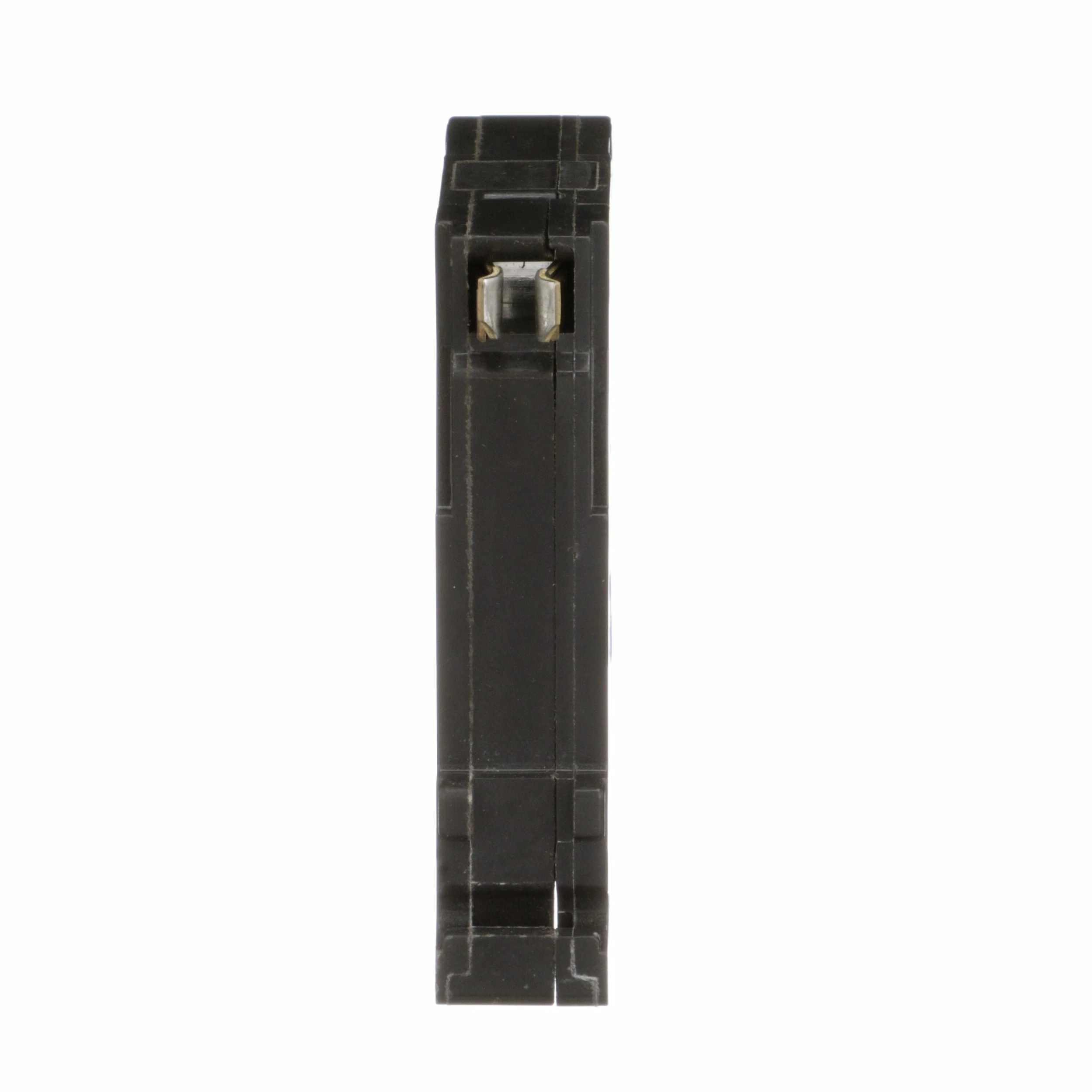

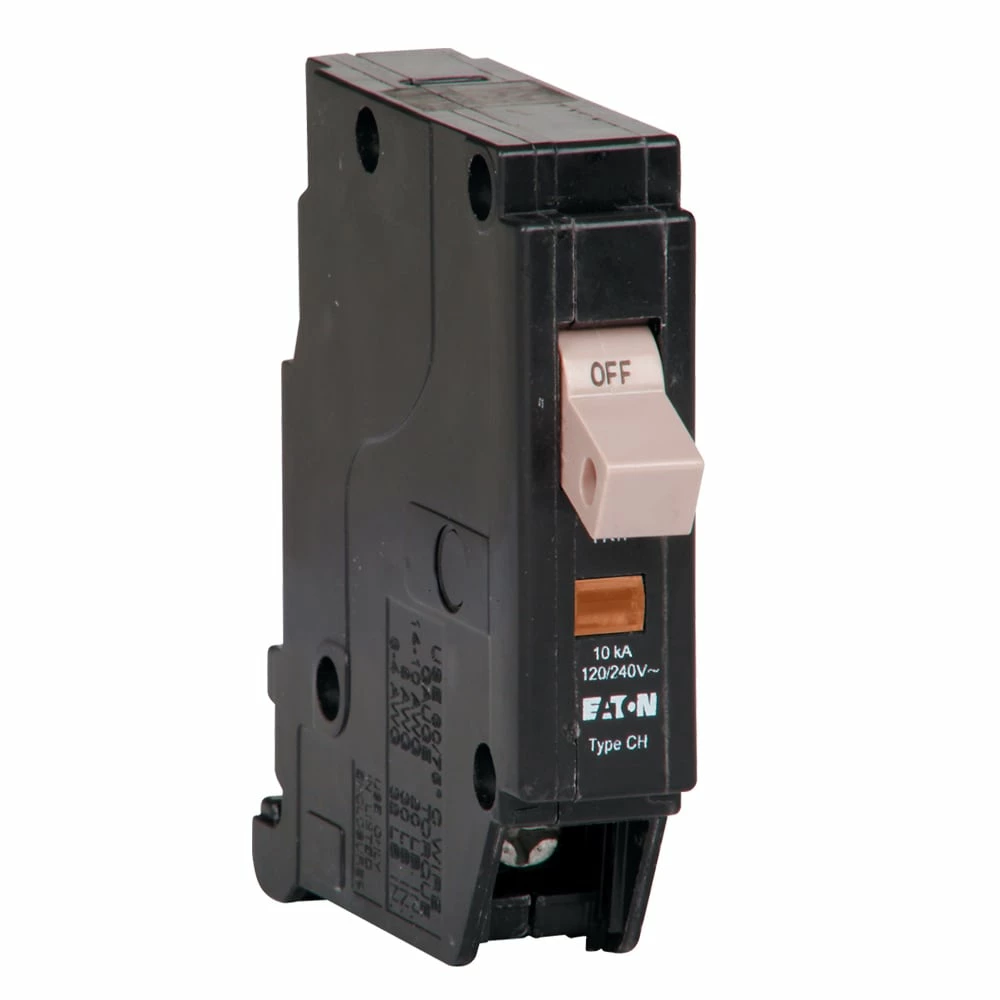

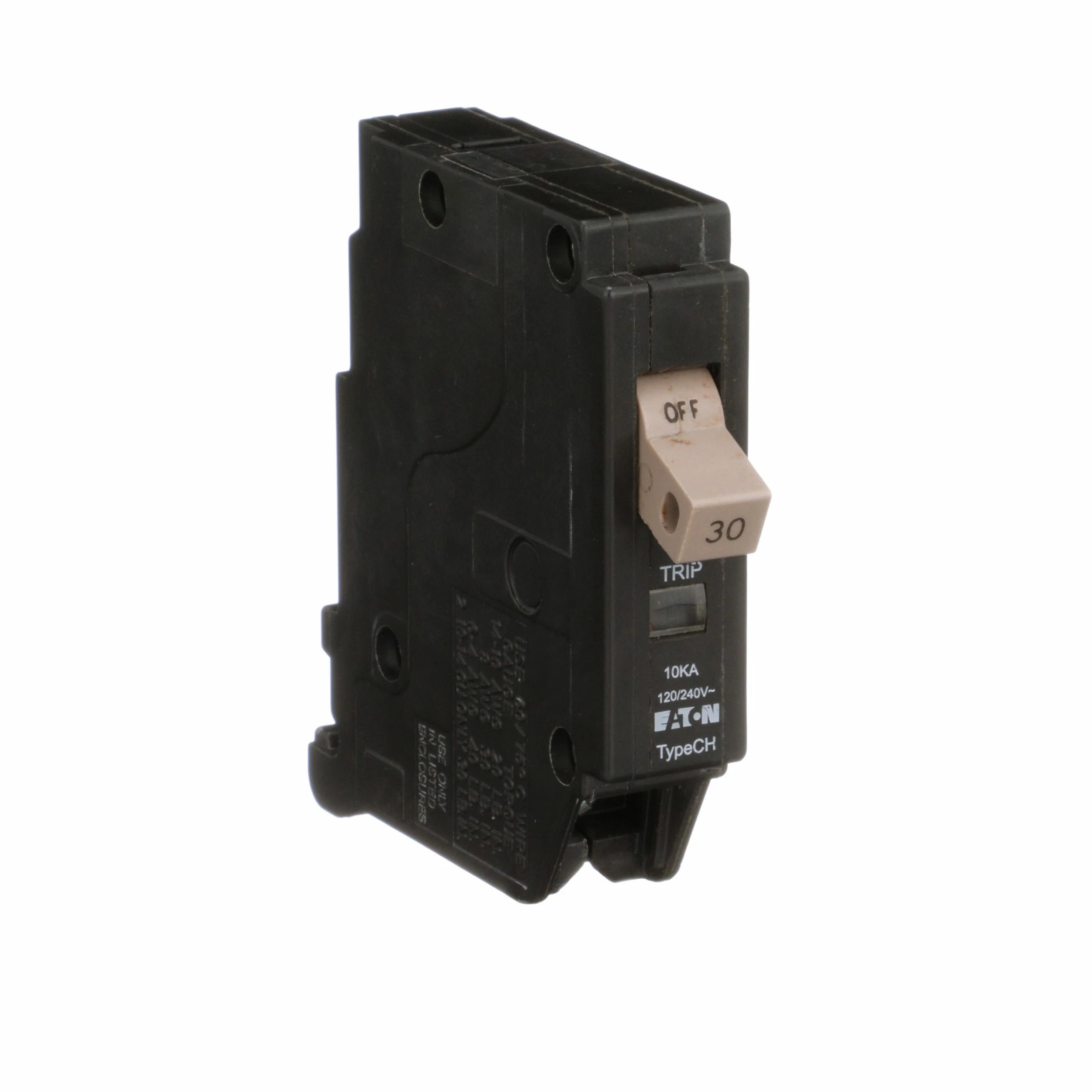

Eaton Circuit Breakers Type CH 30-Amp 1-Pole Standard Trip Circuit Breaker

Eaton’s residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

• For use in Eaton Type CH load centers, spa, pool and meter breaker panels
• Trip to OFF and simple 1-step reset breaker feature eliminates the need to turn the breaker OFF before turning to the on position
• Eaton has added a trip flag to visibly indicate breaker status
• Flag visually confirms tripped status, making it easy for the homeowner to identify
• Tri-combo screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
• Requires (1) 3/4-in space
• Interrupt rating is 10 kAIC
• Carries listing for HACR applications
• Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, and surge protection
