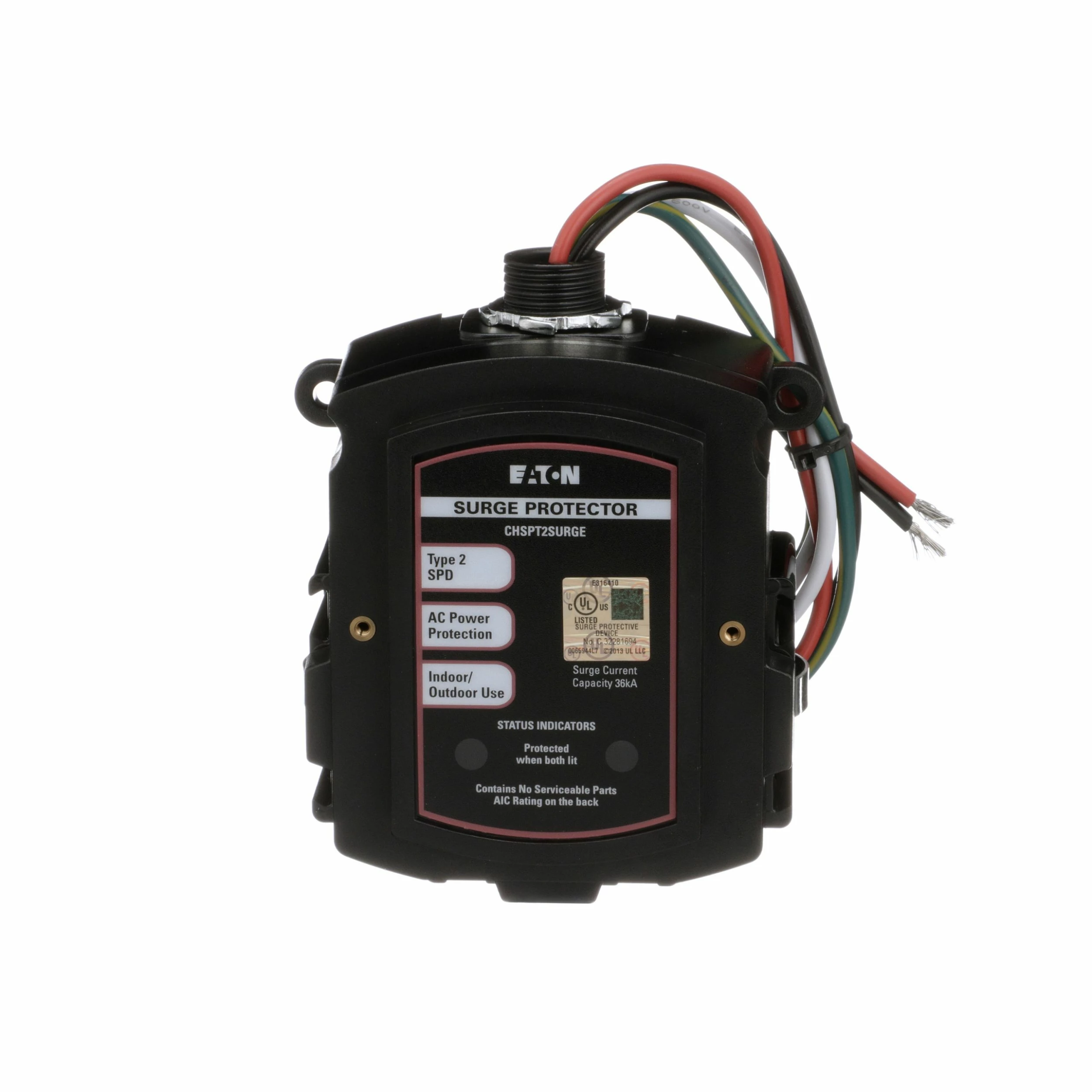

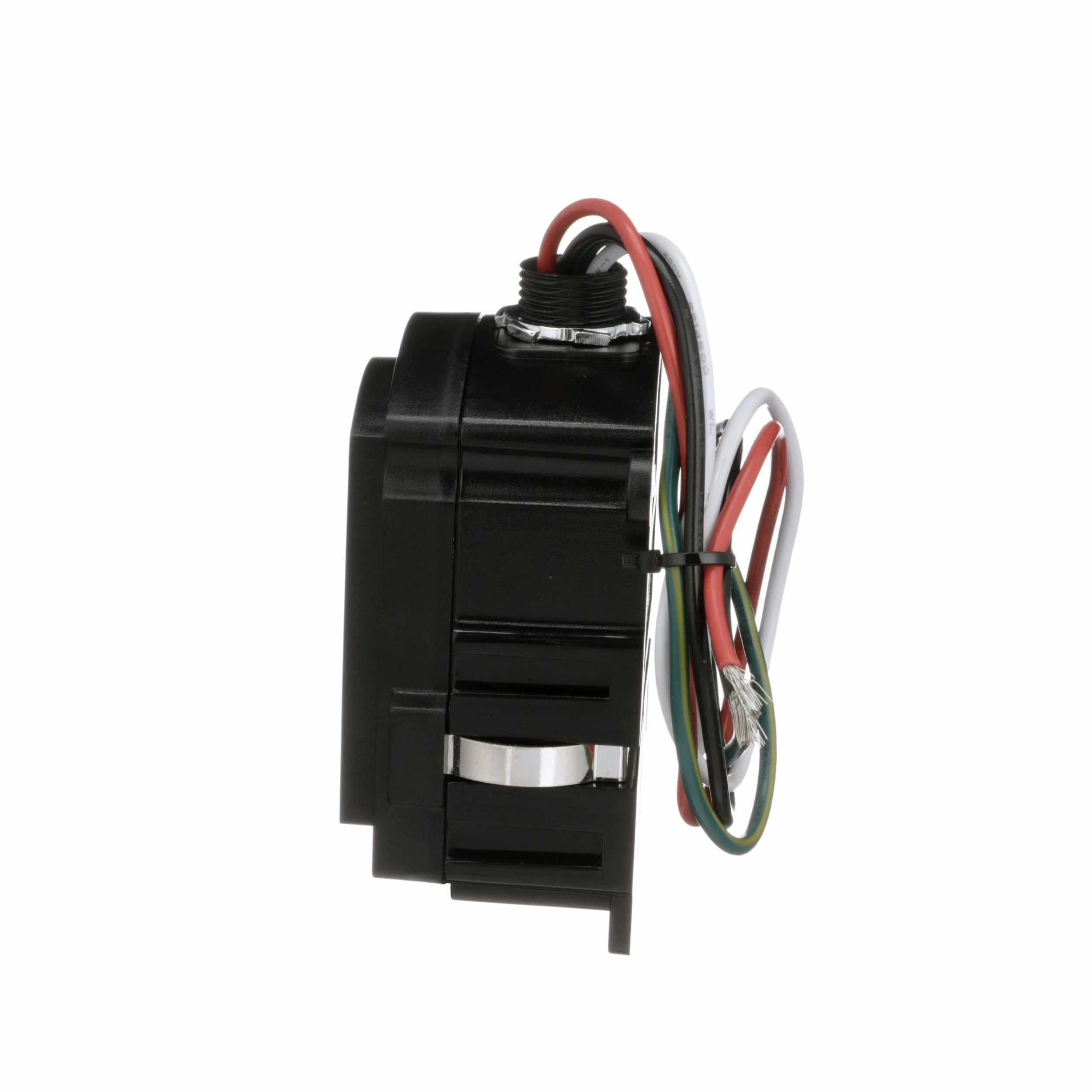

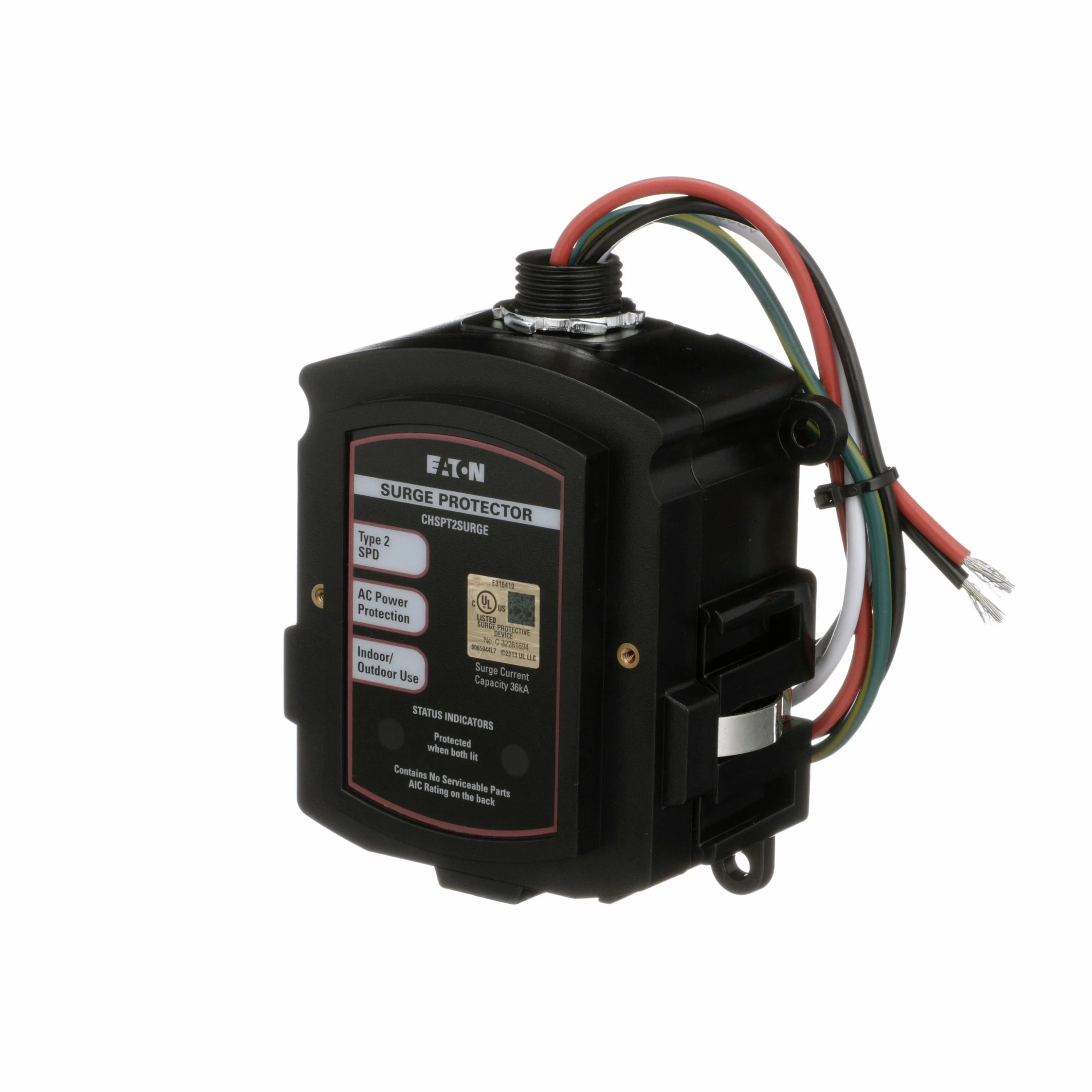

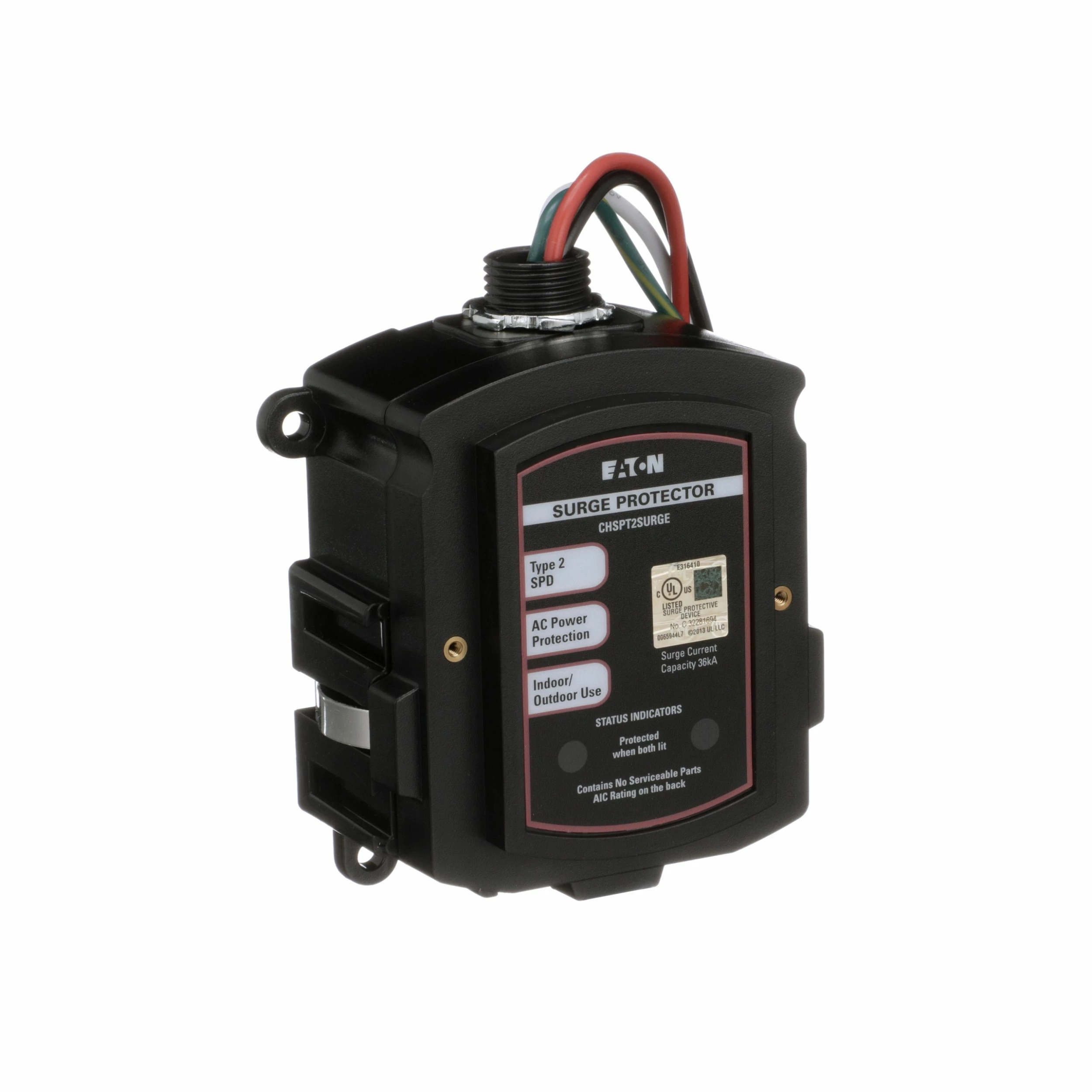

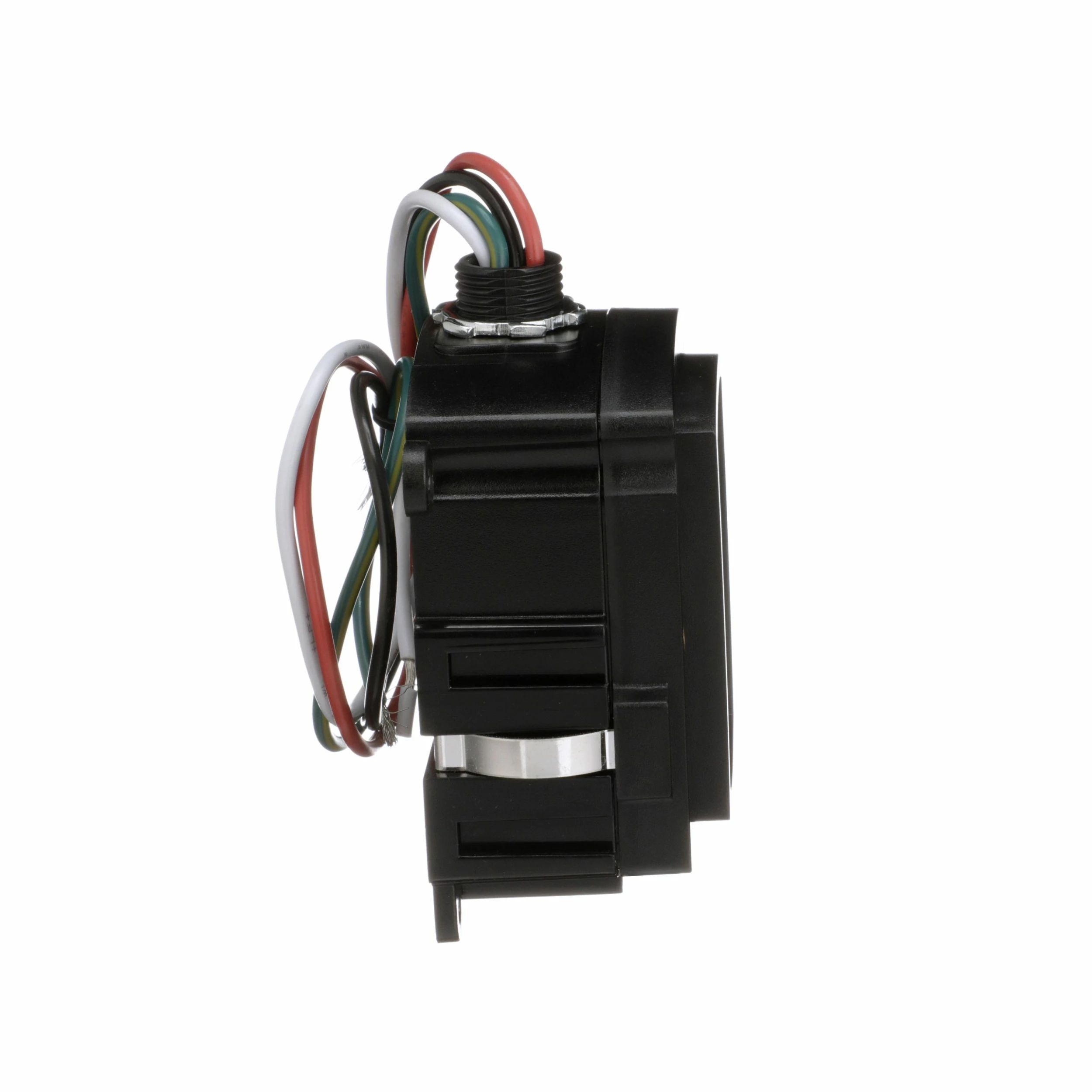

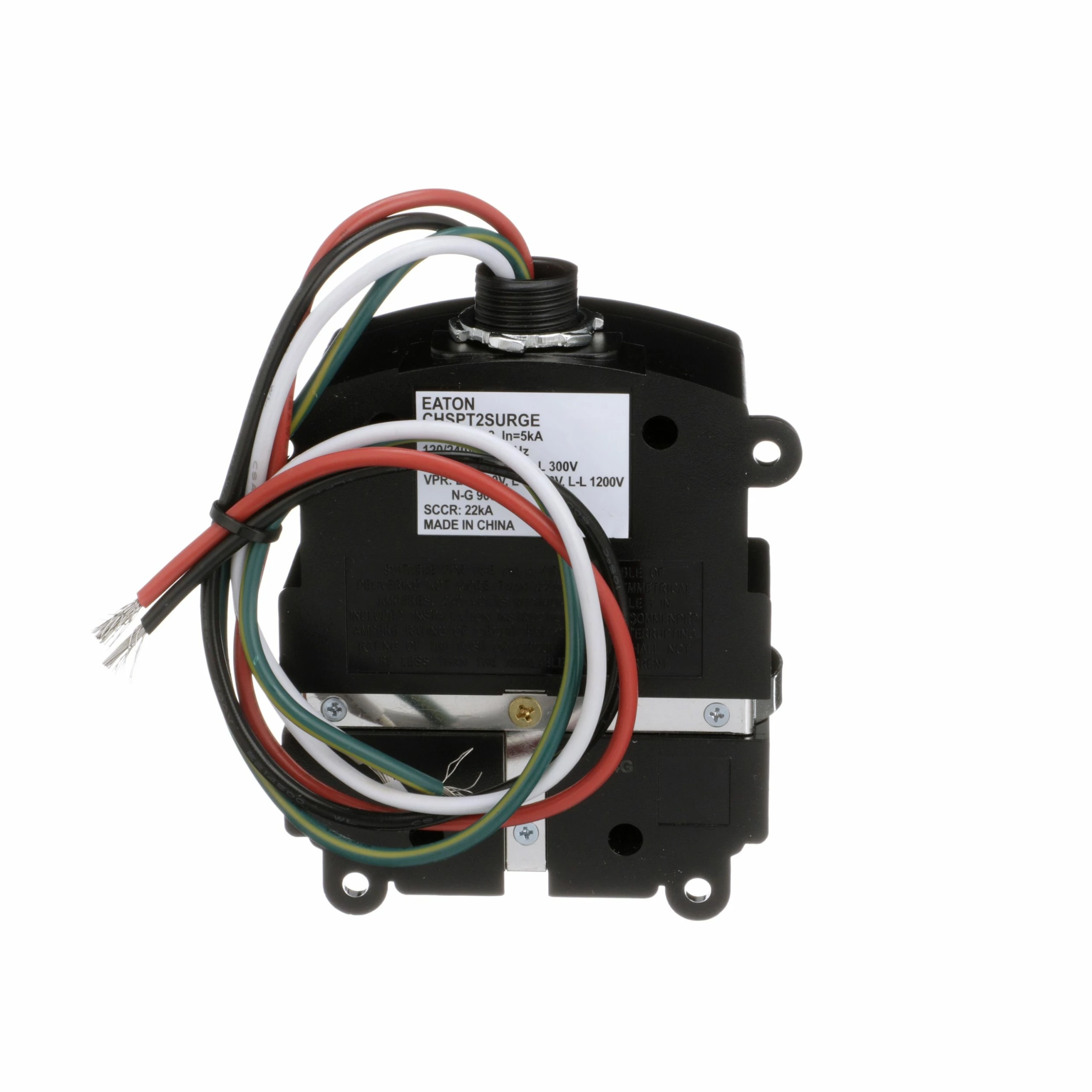

Eaton Whole House Surge Protectors Whole Home 36-kA Indoor Surge Protective Device
Original price was: $92.98.$69.74Current price is: $69.74.
- Quality Meets Affordability
- Get the Best for Less
- Secure Payments, Secure Shopping
- Protect Your Information, Shop with Safe Payments
- Protect your home electronics from the damaging effects of electrical surges
- Whole house AC protection
- Protection at the home entrance can reduce surges entering the home to an acceptable level for your home electronics and appliances
- Surge device is rated for a type 2 installation which is after a main disconnect and must be installed using a dedicated circuit breaker, circuit breaker is sold separately
- It is recommended to use a 2-pole 15 ampere circuit breaker, sold separately
- Universally connects to any manufacturer’s loadcenter
- Clear, visible LED indication displaying status of the surge protector
- Enclosure is rated NEMA 4
- Product should be connected ON the load side of the load center main service disconnect through a dedicated circuit breaker
| Series Name | Whole Home |
|---|---|
| Manufacturer Color/Finish | Black |
| Amperage | 15 |
| Voltage Protection Rating L-G | 700-V |
| CA Residents: Prop 65 Warning(s) | No |
| Coaxial Lines Protected | 0 |
| Surge Current Protection Per Phase | 36-kA |
| Warranty | Limited lifetime |
| Use Location | Indoor |
| Application | Residential |
| Housing Material | Plastic |
| UNSPSC | 39121600 |
| Indicator Light | Yes |
| Line Protection | L-N-L-G-L-L-N-G |
| Maximum Continuous Operating Voltage | 150/300 Vpk |
| Width (Inches) | 5 |
| Type | Surge protective device |
| Depth (Inches) | 7.5 |
| Voltage Protection Rating L-N | 700-V |
| Grounded | Yes |
| Enclosure Rating | NEMA 4 |
| Wire Gauge | 12-AWG |
| Wattage | 0 |
| Height (Inches) | 2 |
| Weight (lbs.) | 0.85 |
| Surge Protection | UL |
| Package Quantity | 1 |
| Safety Listing | UL safety listing |
| Color/Finish Family | Black |
| Response Time (Microseconds) | 0 |
| Maximum Amperage | 15 |
| Voltage Protection Rating L-L | 1200-V |
| Weather Resistant | Yes |
| Number of Leads | 4 |
| Connection Type | Next to load center mount |
| Nominal Discharge Current | 5kA |
| Short Circuit Current Rating | 22 kA |
| Voltage Protection Rating N-G | 900-V |
| SPD Type | Type 2 |
| Rating in Joules | 1890 |
| Water Resistant | No |
